Rugged Mobility Meets Secure Mounting

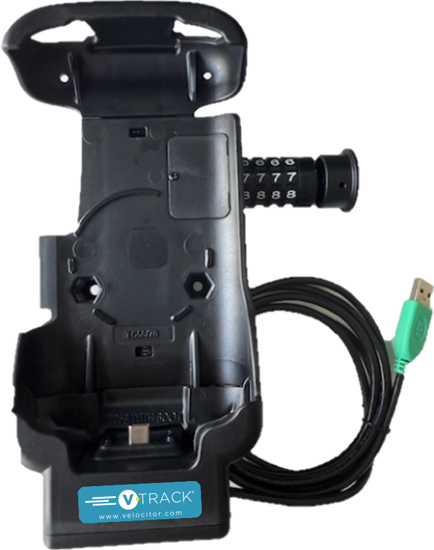

Introducing the Velocitor Combo-Locking USB-C Powered Dock for Zebra TC58 & TC78
No More Failing Pogo Pins!
Purpose-Built for ISP Drivers
Velocitor proudly offers the Combo-Locking Form-Fit Powered Dock, engineered to meet the demands of ISP drivers using the Zebra TC58 and TC78 rugged handheld PCs. This solution ensures secure, powered, and ergonomic docking in the most challenging environments. 2 screw removeable access to USB cord allowing for quick replacement.
With safety in mind, keep devices charged throughout day while keeping device mounted and out of drivers hands with a view for turn by turn directions at road eye level.
Keep devices charged, docked and locked overnight in truck and eliminate the need to gather and take home scanners after end of day.
Key Features
- Combo-Locking Security
Spring-loaded, form-fit design with integrated locking mechanism for theft deterrence and device stability.
- Integrated Power Delivery
1.25-meter female USB connector ensures reliable charging while docked.
- Flexible Mounting Options
Compatible with 2-hole pattern diamond bases and B or C size ball mounts for near-infinite adjustability. (Optional VEL-VAS Vehicle Mounting Arm sold separately)
- Durable Construction
Made from high-strength composite materials. USB-C dock to device charging, eliminates the failure of pogo pins. USB A line out to Cig lighter or USB A vehicle port.
- Replaceable USB cable
2 screw removeable access to USB cord allowing for quick replacement.
Specifications
|
Feature
|
Details
|
|
Mounting Pattern
|
2-Hole AMPS (1.912")
|
|
Materials
|
High-strength composite
|
|
Cable Length
|
1.25 meters
|
|
Connector Type
|
USB C to device and USB A line out
|
|
Weight
|
0.8 lbs
|
What’s Included
Combo-Locking USB-C Powered Dock
TC58 top insert w/Boot
TC58 bottom insert
TC58 bottom insert w/ Boot
Screws and nuts for Cradle to arm mounting

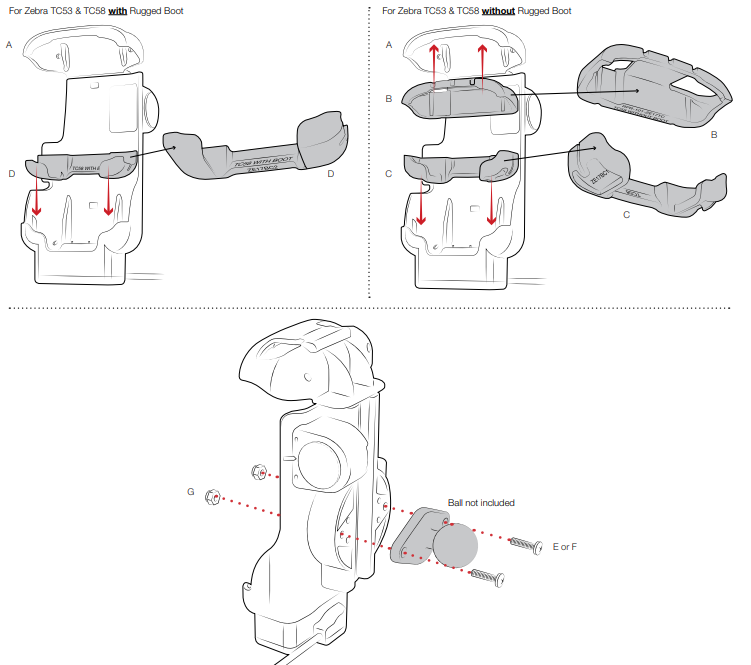

TC78 to TC58 conversion Instructions:
Cradle is equipped to accept TC78 out of box.
To dock TC58, plastic inserts are included.
TC58 without Boot:
Install bottom insert labeled “TC58”
Install top insert labeled “TC58 without Boot”
TC58 with Boot:
Install bottom insert labeled “TC58 with Boot”
Do not install top insert
